One of the unique features of my new Race to Alaska trimaran are the canting dagger boards. They were designed by Rick Willoughby. Not only will the boards provide lift, but they will help counteract the heeling forces from the sail. I have very low volume stabilizer floats, so this lift will help keep me sailing level in a moderate breeze.
The daggerboards can cant from 60 degrees off horizontal to about 10 degrees, where the tip of the board is clear of the water. The adjustment is made by moving the inboard end of the brace up and down the guide rod. Originally this control was going to be with control lines, but now I believe I will reach forward and do it by hand. It pays to have long arms.
When sailing you lift the windward board and lower the leeward board each tack. When reaching both boards could be lowered to provide lift. The boards will also have a friction release of the board on the hinge plate so it is not fatally damaged in a collision. While these foils are not designed to fly the main hull, in the right conditions there will be some lift, and increased speed.
Tonight I tackled the installation of the pedal mast and gearbox. Just another challenging job that I couldn’t afford to mess up. First I had to cut a big hole in the boat where the Mitrpak right angle gearbox will go. The shaft in the photo runs between a pillow block inside the pedal mast, and out to a coupling to the gearbox. The lower 14 tooth cog will attach to it.

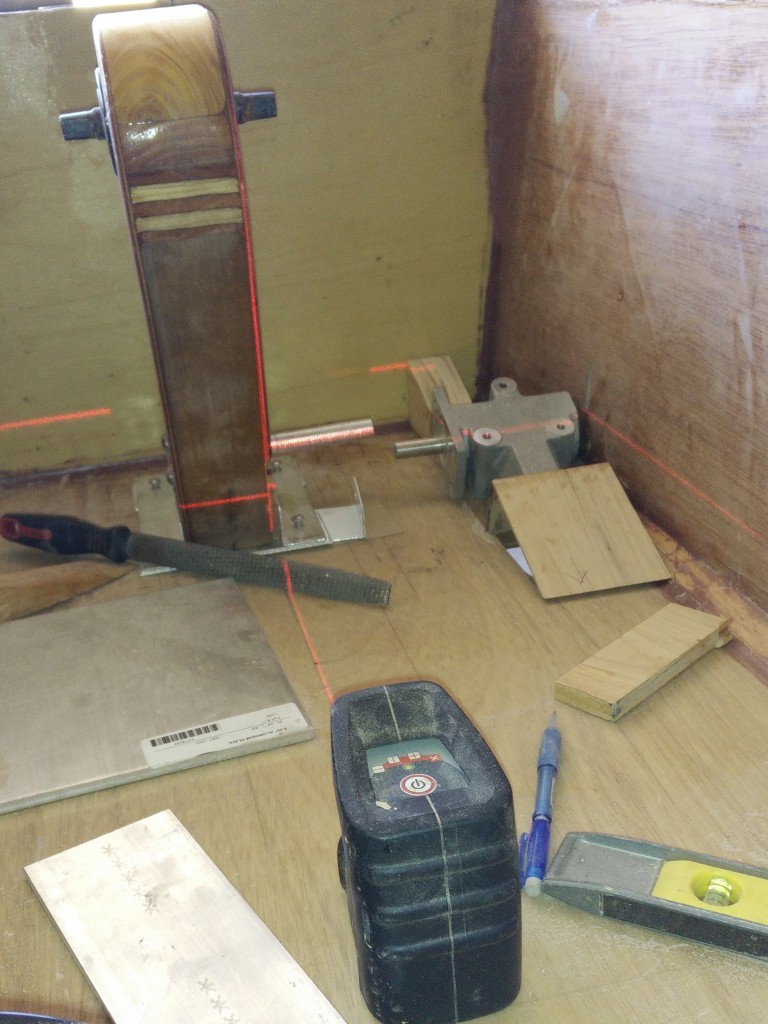

Next I did my best to line everything up

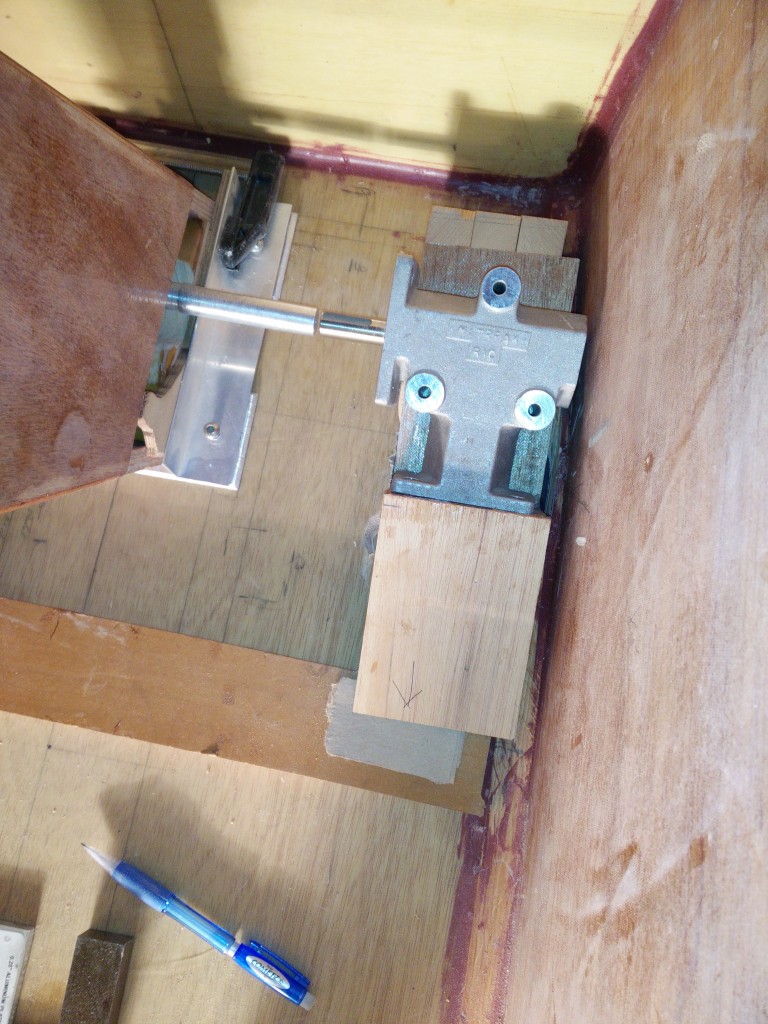

The prop shaft will actually run along the side of the boat. The hole is cut in the cockpit sole which hangs over the main hull about the width of the gearbox.

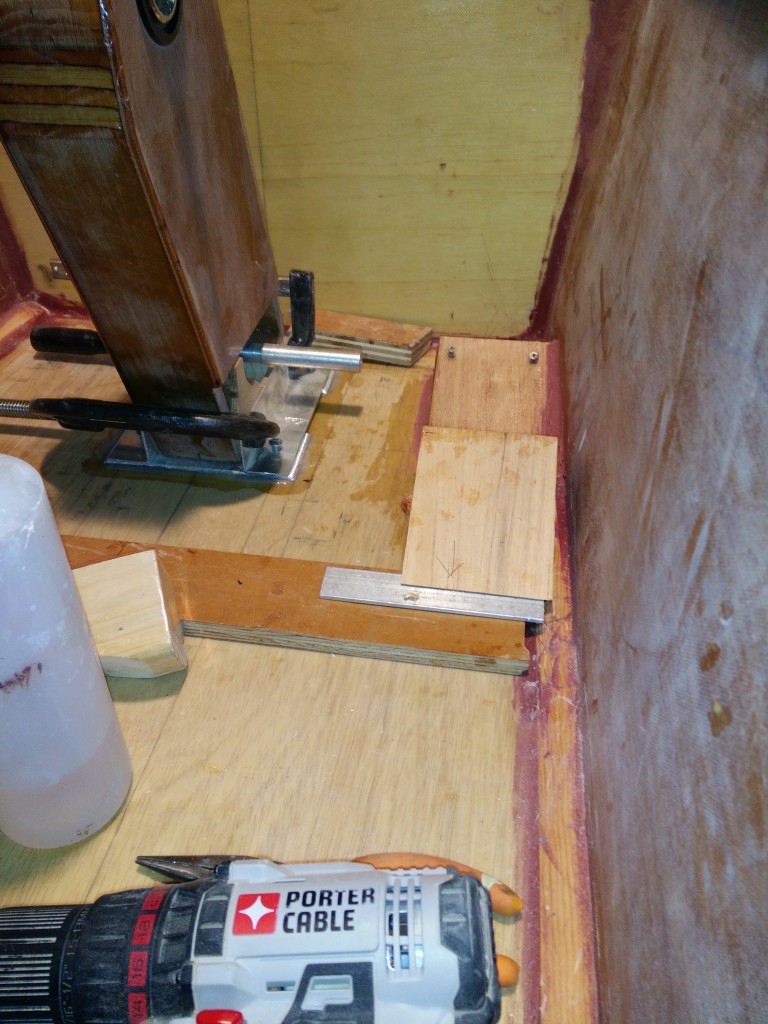

Here everything is epoxied into place. The Pedal mast aluminum plates are bedded in epoxy, and sitting on a little square of fiberglass. Tomorrow I will fiberglass over the top of the attachment plates for the pedal mast.
